SKF 29417 E

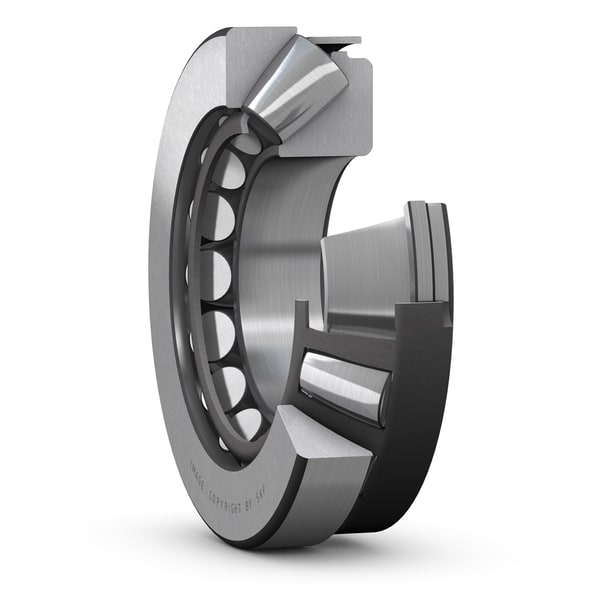

Spherical roller thrust bearing with stamped steel cage
Dimensions
SKF 29417 E Spherical Roller Thrust Bearing Introduction
The SKF 29417 E is part of the SKF Spherical roller thrust bearings product series. It is supplied as a spherical roller thrust bearing with a stamped steel cage, according to the supplied product data.
What type of bearing is the 29417 E?
The 29417 E is classified within the category path Brand > SKF > Bearings > Roller bearings > Spherical roller thrust bearings. The product title identifies it as a spherical roller thrust bearing with a stamped steel cage.
29417 E Dimensions and Physical Specifications
- Bore diameter d: 85.0 mm
- Outside diameter D: 180.0 mm
- Height H: 58.0 mm
- Outside diameter of shaft washer end side face d1: 155.0 mm
- Shoulder diameter outer ring D1: 121.0 mm
- Width shaft washer B: 37.0 mm
- Height shaft washer plus cage B1: 51.1 mm
- Height housing washer C: 28.0 mm
- Distance from shaft washer end side face to pressure point s: 54.0 mm
- Chamfer dimension r1,2: 2.1 mm
- Mass: 6.54 kg
What are the bearing's bore, outside diameter, and height?
The supplied dimensions for the 29417 E are an 85.0 mm bore diameter, a 180.0 mm outside diameter, and a 58.0 mm height. Additional listed dimensions include d1, D1, B, B1, C, s, and the r1,2 chamfer dimension.
29417 E Listed Load and Speed Data
The supplied product data includes a listed value of 735.0 kN and a speed value of 3600.0 r/min. The data does not define the load rating designation for the 735.0 kN value, so it should be verified against the complete manufacturer specification before selection.
What load and speed values are provided for the 29417 E?
The structured data lists 735.0 kN and 3600.0 r/min. Because no load-rating label or operating condition is supplied with these figures, they are presented only as the values appearing in the product data, without interpreting them as a specific static or dynamic rating.
