SKF 29430 E

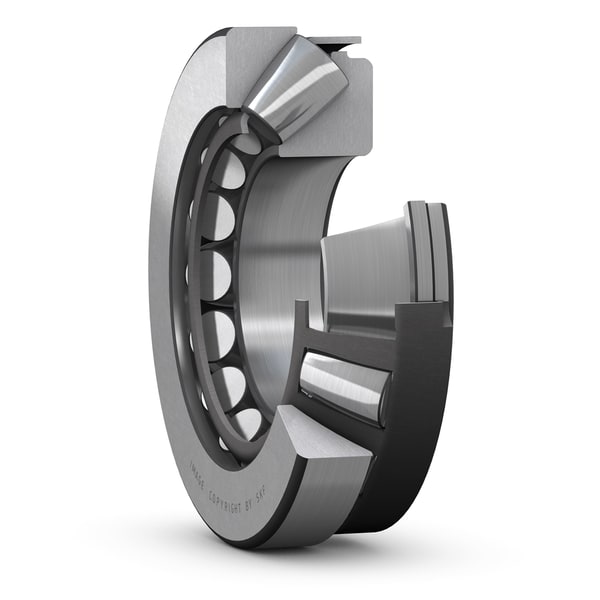

Spherical roller thrust bearing with stamped steel cage
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
150.0 mm
Bore diameter
D
300.0 mm
Outside diameter
H
90.0 mm
Height
d1
262.0 mm
Outside diameter of shaft washer end side face
D1
208.0 mm
Shoulder diameter outer ring
B
58.0 mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage)
B1
80.8 mm
Height shaft washer + cage
C
43.4 mm
Height housing washer
s
92.0 mm
Distance from shaft washer end side face to pressure point
r1,2
4.0 mm
Chamfer dimension shaft washer
mass
27.9 kg
Product net weight
