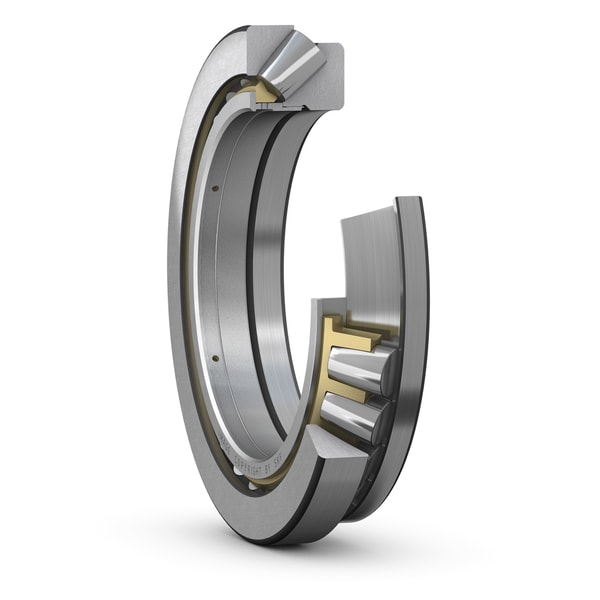

SKF 29488 EM
Spherical roller thrust bearing with machined metal cage
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
440.0 mm
Bore diameter
D
780.0 mm
Outside diameter
H
206.0 mm
Height
d1
710.0 mm
Outside diameter of shaft washer end side face
D1
577.0 mm
Shoulder diameter outer ring
B
77.0 mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a machined cage)
B1
199.0 mm
Height shaft washer + cage
C
101.0 mm
Height housing washer
s
257.0 mm
Distance from shaft washer end side face to pressure point
r1,2
9.5 mm
Chamfer dimension shaft washer
mass
410.0 kg
Product net weight
