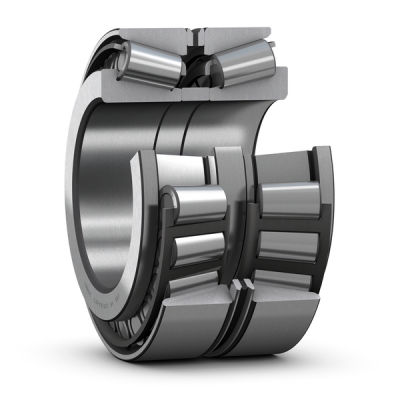

SKF 30224T133/DB
Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
215.0 mm
Outside diameter
T
133.0 mm
Total width
d1
161.77 mm
Shoulder diameter of inner ring
C
114.0 mm
Width of outer rings
l
46.0 mm
Width of spacer ring
b
24.0 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
3.0 mm
Chamfer dimension
r5
1.0 mm
Chamfer dimension
a
131.414 mm
Distance between pressure points
mass
15.7 kg
Product net weight
