SKF 305804 C-2RS1

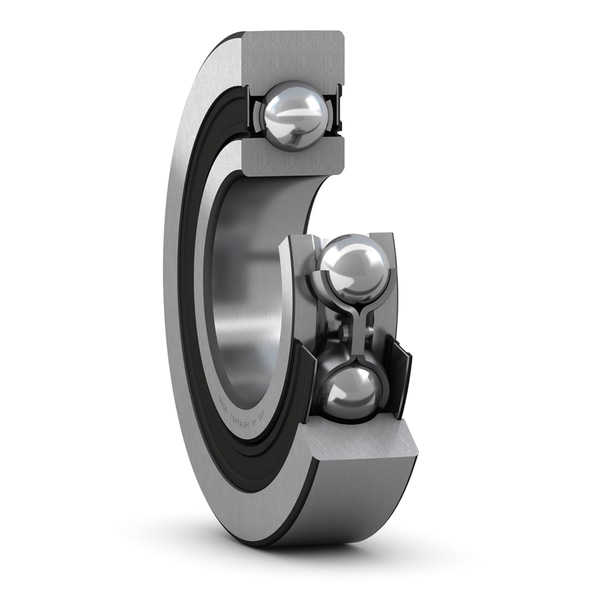

Cam roller (yoke-type track roller) with crowned outside surface, integral sealing and relubrication feature
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
52.0 mm
Outside diameter
d
20.0 mm
Bore diameter
B
20.6 mm
Width
d1
27.7 mm
Shoulder/recess diameter inner ring
D1
40.9 mm
Recess diameter outer ring
R
400.0 mm
Profile running surface (crown) outer ring
r1,2
1.0 mm
Chamfer dimension
a
28.0 mm
Distance pressure points
mass
0.215 kg
Product net weight
