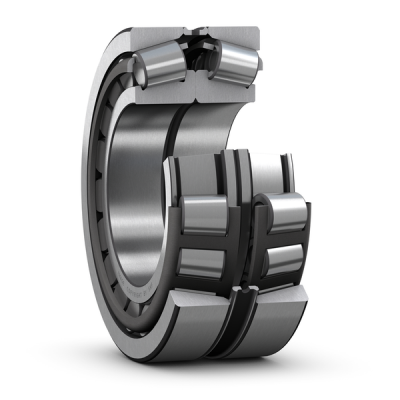

SKF 31313/CL7CDF
Matched tapered roller bearings arranged face-to-face
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
65.0 mm
Bore diameter
D
140.0 mm
Outside diameter
T
72.0 mm
Total width
2B
66.0 mm
Width of inner rings
b
12.0 mm
Width of lubrication groove
K
9.0 mm
Diameter of lubrication hole
r3,4
2.5 mm
Chamfer dimension
r5
1.0 mm
Chamfer dimension
mass
4.98 kg
Product net weight
