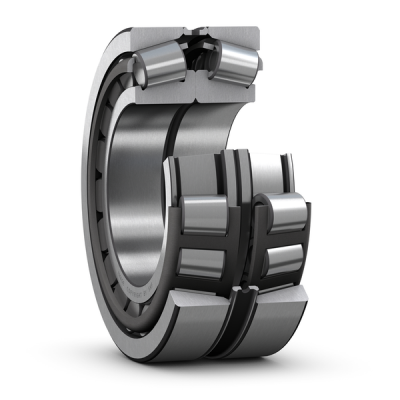

SKF 31324 X/DF
Matched tapered roller bearings arranged face-to-face
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
260.0 mm
Outside diameter
T
136.0 mm
Total width
2B
124.0 mm
Width of inner rings
b
24.0 mm
Width of lubrication groove
K
14.0 mm
Diameter of lubrication hole
r3,4
3.0 mm
Chamfer dimension
r5
1.0 mm
Chamfer dimension
mass
32.0 kg
Product net weight
