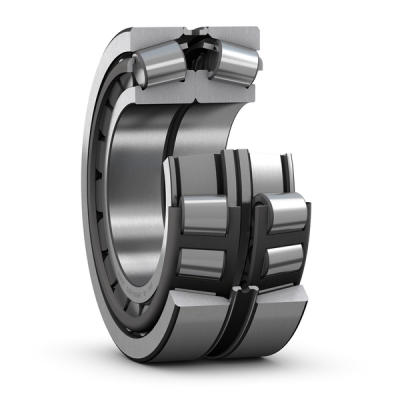

SKF 31326 X/DF
Matched tapered roller bearings arranged face-to-face
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
D
280.0 mm
Outside diameter
T
144.0 mm
Total width
2B
132.0 mm
Width of inner rings
b
20.0 mm
Width of lubrication groove
K
15.0 mm
Diameter of lubrication hole
r3,4
4.0 mm
Chamfer dimension
r5
1.5 mm
Chamfer dimension
mass
39.8 kg
Product net weight
