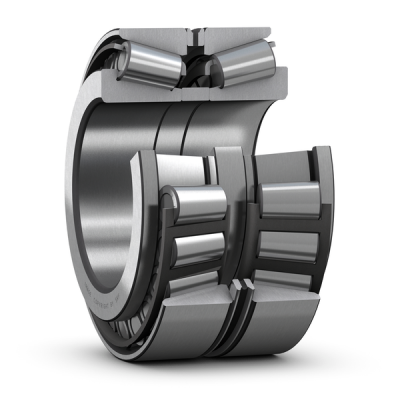

SKF 31326T164 X/DBC100
Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
D
280.0 mm
Outside diameter
T
164.0 mm
Total width
d1
204.62 mm
Shoulder diameter of inner ring
C
108.0 mm
Width of outer rings
l
20.0 mm
Width of spacer ring
b
8.0 mm
Width of lubrication groove
K
6.0 mm
Diameter of lubrication hole
r1,2
5.0 mm
Chamfer dimension
r5
1.5 mm
Chamfer dimension
a
187.927 mm
Distance between pressure points
mass
41.1 kg
Product net weight
