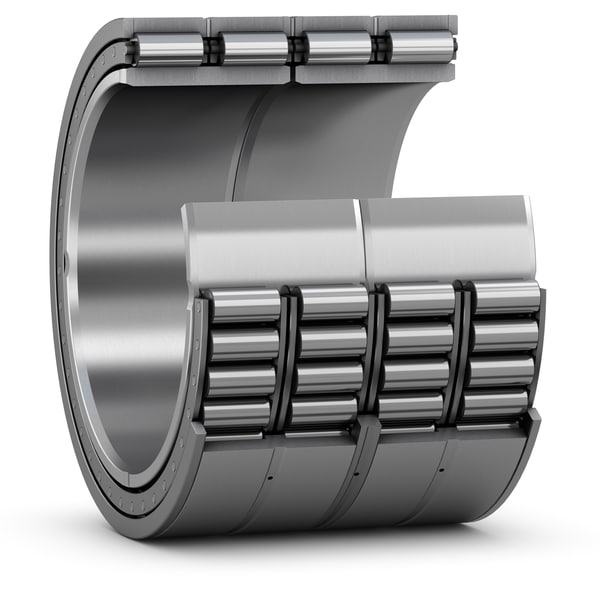

SKF 315196 A
Four-row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
460.0 mm
Bore diameter
D
650.0 mm
Outside diameter
B
424.0 mm
Total bearing width over inner ring(s)
C
424.0 mm
Total bearing width over outer ring(s)
D1
594.0 mm
Bore diameter loose flange ring
F
510.0 mm
Raceway diameter inner ring
b
16.7 mm
Width of annular groove
K
9.0 mm
Diameter lubrication hole (outer ring)
r1,2
12.0 mm
Corner radius/chamfer inner ring
α
20.0 °
Chamfer angle inner ring
r3,4
3.0 mm
Chamfer dimension on the outer ring
mass
450.0 kg
Product net weight
