SKF 315800

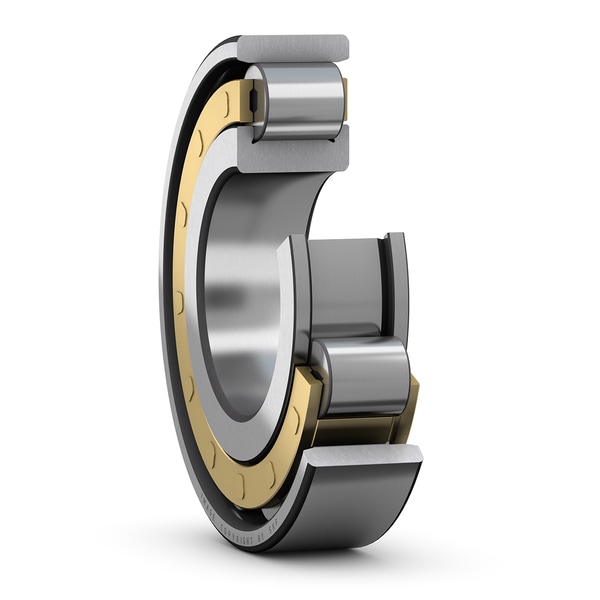

Single row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
820.0 mm
Bore diameter
D
990.0 mm
Outside diameter
B
72.0 mm
Width
d1
885.0 mm
Shoulder diameter of inner ring
E
943.0 mm
Raceway diameter of outer ring
r1,2
5.0 mm
Chamfer dimension
s
9.3 mm
Permissible axial displacement
mass
110.0 kg
Product net weight
