SKF 319320

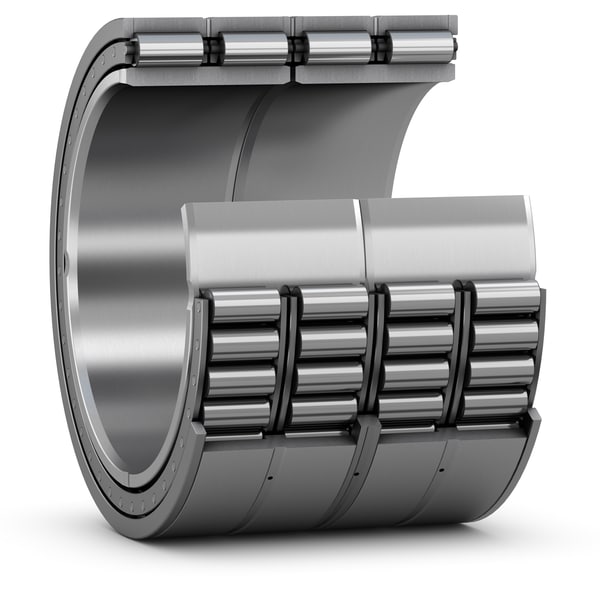

Four-row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
480.0 mm
Bore diameter
D
680.0 mm
Outside diameter
B
420.0 mm
Total bearing width over inner ring(s)
C
420.0 mm
Total bearing width over outer ring(s)
D1
620.7 mm
Bore diameter loose flange ring
F
528.0 mm
Raceway diameter inner ring
b
16.7 mm
Width of annular groove
K
9.0 mm
Diameter lubrication hole (outer ring)
r1,2
12.0 mm
Corner radius/chamfer inner ring
r3,4
3.0 mm
Chamfer dimension on the outer ring
mass
496.0 kg
Product net weight
