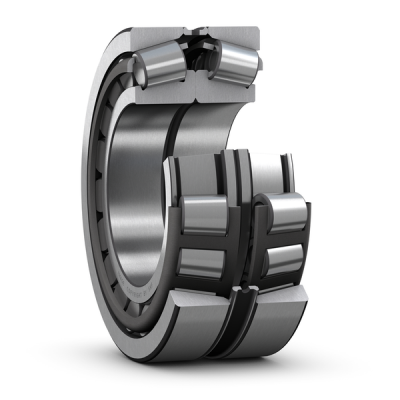

SKF 32036 X/DF
Matched tapered roller bearings arranged face-to-face
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
180.0 mm
Bore diameter
D
280.0 mm
Outside diameter
T
128.0 mm
Total width
2B
128.0 mm
Width of inner rings
b
15.0 mm
Width of lubrication groove
K
10.0 mm
Diameter of lubrication hole
r3,4
2.5 mm
Chamfer dimension
r5
1.0 mm
Chamfer dimension
mass
29.4 kg
Product net weight
