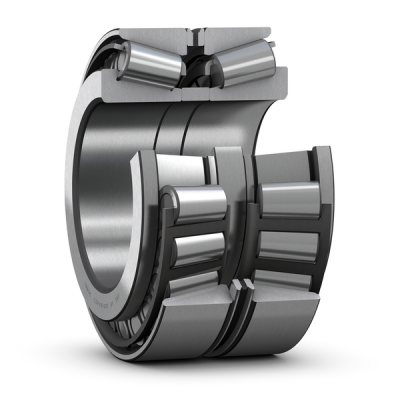

SKF 32036T150 X/DB
Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
180.0 mm
Bore diameter
D
280.0 mm
Outside diameter
T
150.0 mm
Total width
d1
230.2 mm
Shoulder diameter of inner ring
l
22.0 mm
Width of spacer ring
b
9.0 mm
Width of lubrication groove
K
7.0 mm
Diameter of lubrication hole
r1,2
3.0 mm
Chamfer dimension
r5
1.0 mm
Chamfer dimension
a
140.183 mm
Distance between pressure points
mass
30.8 kg
Product net weight
