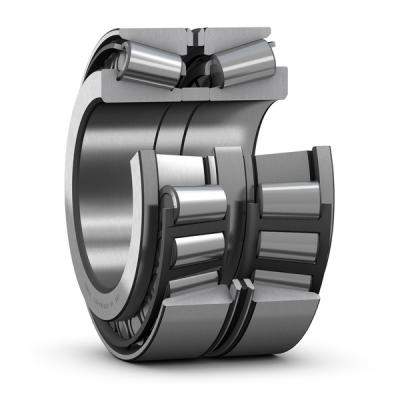

SKF 32044T165 X/DBC125
Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
220.0 mm
Bore diameter
D
340.0 mm
Outside diameter
T
165.0 mm
Total width
d1
280.88 mm
Shoulder diameter of inner ring
l
13.0 mm
Width of spacer ring
b
6.4 mm
Width of lubrication groove
K
5.0 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
r5
1.0 mm
Chamfer dimension
a
157.177 mm
Distance between pressure points
mass
51.6 kg
Product net weight
