SKF 32044T168 X/DB

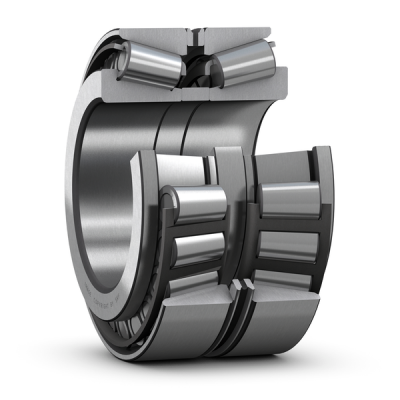

Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
220.0 mm
Bore diameter
D
340.0 mm
Outside diameter
T
168.0 mm
Total width
d1
280.88 mm
Shoulder diameter of inner ring
C
130.0 mm
Width of outer rings
l
16.0 mm
Width of spacer ring
b
6.4 mm
Width of lubrication groove
K
5.0 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
r5
1.0 mm
Chamfer dimension
a
160.177 mm
Distance between pressure points
mass
51.9 kg
Product net weight
