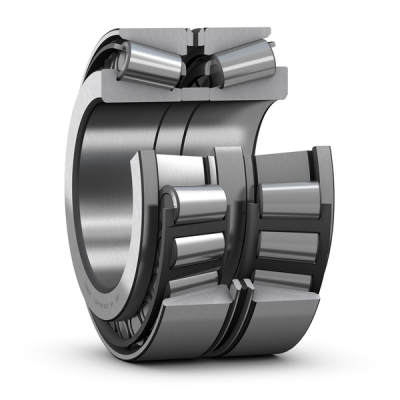

SKF 32226T142/DB
Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
D
230.0 mm
Outside diameter
T
142.0 mm
Total width
d1
176.0 mm
Shoulder diameter of inner ring
C
114.5 mm
Width of outer rings
l
6.5 mm
Width of spacer ring
t
3.0 mm
Width of lubrication groove
r1,2
4.0 mm
Chamfer dimension
r5
1.0 mm
Chamfer dimension
a
117.505 mm
Distance between pressure points
mass
23.1 kg
Product net weight
