SKF 32226T149.5/DBC305

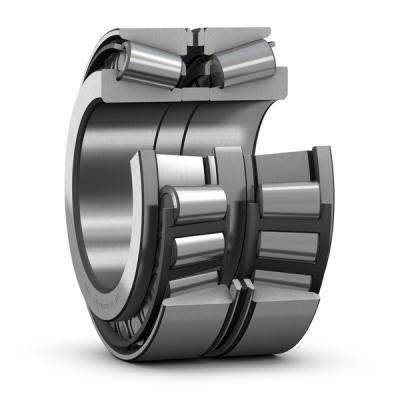

Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
D
230.0 mm
Outside diameter
T
149.5 mm
Total width
d1
176.0 mm
Shoulder diameter of inner ring
C
122.0 mm
Width of outer rings
l
14.0 mm
Width of spacer ring
b
7.0 mm
Width of lubrication groove
K
5.0 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
r5
1.0 mm
Chamfer dimension
a
125.005 mm
Distance between pressure points
mass
23.7 kg
Product net weight
