SKF 32228T158/DB

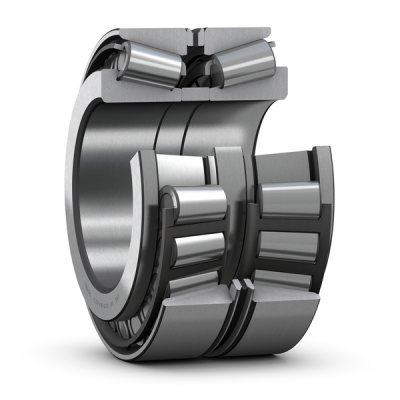

Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
140.0 mm
Bore diameter
D
250.0 mm
Outside diameter
T
158.0 mm
Total width
d1
191.4 mm
Shoulder diameter of inner ring
C
130.5 mm
Width of outer rings
l
14.5 mm
Width of spacer ring
b
4.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
r5
1.0 mm
Chamfer dimension
a
133.505 mm
Distance between pressure points
mass
30.2 kg
Product net weight
