SKF 32952

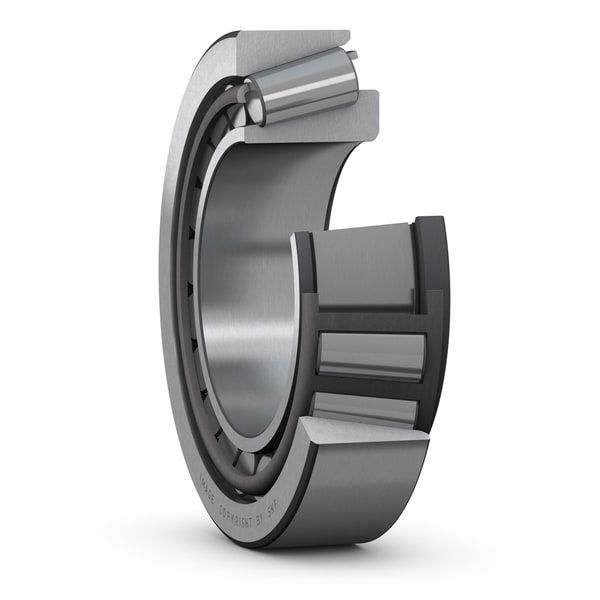

Single row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
260.0 mm
Bore diameter
D
360.0 mm
Outside diameter
T
63.5 mm
Total width
d1
308.6 mm
Shoulder diameter of inner ring
B
63.5 mm
Width of inner ring
C
48.0 mm
Width of outer ring
r1,2
3.0 mm
Chamfer dimension of inner ring
r3,4
2.5 mm
Chamfer dimension of outer ring
a
68.7 mm
Distance side face to pressure point
mass
18.9 kg
Product net weight
