SKF 33014T108.8/DB11C100

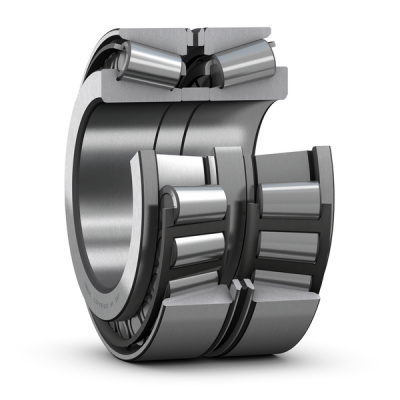

Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
110.0 mm
Outside diameter
T
108.8 mm
Total width
d1
88.95 mm
Shoulder diameter of inner ring
l
46.8 mm
Width of spacer ring
r1,2
1.5 mm
Chamfer dimension
r5
0.6 mm
Chamfer dimension
a
91.855 mm
Distance between pressure points
mass
3.06 kg
Product net weight
