SKF 331148 A

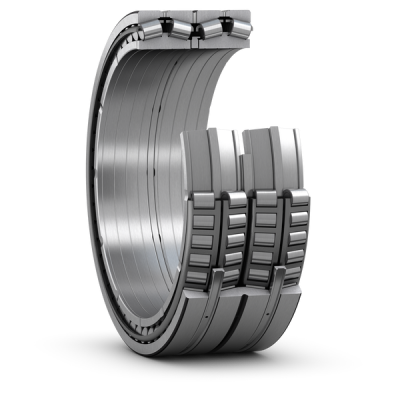

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
584.2 mm
Bore diameter
D
762.0 mm
Outside diameter
B
396.875 mm
Total bearing width over inner rings
T
401.638 mm
Total bearing width over outer rings
d1
620.0 mm
Abutment diameter shaft
D1
688.0 mm
Abutment diameter housing
r1,2
3.3 mm
Chamfer dimension inner ring
r3,4
6.4 mm
Outer ring radius (chamfer)
mass
477.0 kg
Product net weight
