SKF 331157 E/C800

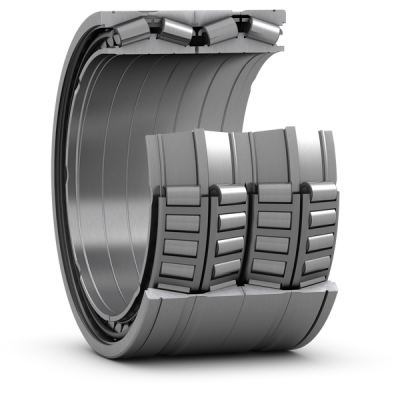

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
514.35 mm
Bore diameter
D
673.1 mm
Outside diameter
B
422.275 mm
Total bearing width over inner rings
T
422.275 mm
Total bearing width over outer rings
d1
546.0 mm
Abutment diameter shaft
D1
622.0 mm
Abutment diameter housing
r1,2
3.3 mm
Chamfer dimension inner ring
r3,4
6.4 mm
Outer ring radius (chamfer)
mass
405.0 kg
Product net weight
