SKF 331169 E/C500

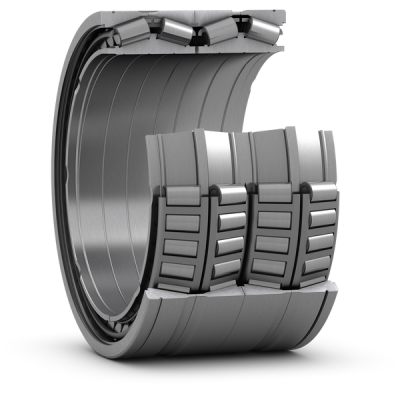

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
457.2 mm
Bore diameter
D
596.9 mm
Outside diameter
B
276.226 mm
Total bearing width over inner rings
T
279.4 mm
Total bearing width over outer rings
d1
487.0 mm
Abutment diameter shaft
D1
544.0 mm
Abutment diameter housing
r1,2
1.5 mm
Chamfer dimension inner ring
r3,4
3.3 mm
Outer ring radius (chamfer)
mass
199.0 kg
Product net weight
