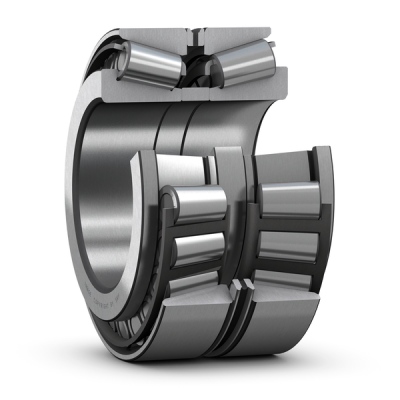

SKF 33118T104/DB
Matched tapered roller bearings arranged back-to-back
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
D
150.0 mm
Outside diameter
T
104.0 mm
Total width
d1
120.38 mm
Shoulder diameter of inner ring
C
84.0 mm
Width of outer rings
l
14.0 mm
Width of spacer ring
b
8.0 mm
Width of lubrication groove
K
4.0 mm
Diameter of lubrication hole
r1,2
2.5 mm
Chamfer dimension
r5
0.6 mm
Chamfer dimension
a
83.342 mm
Distance between pressure points
mass
6.78 kg
Product net weight
