SKF 332167

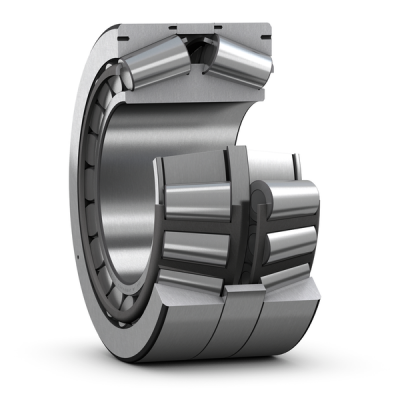

Double row tapered roller bearing, TDI design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
400.0 mm
Bore diameter
D
650.0 mm
Outside diameter
T
240.0 mm
Total width
B
240.0 mm
Width of inner ring
d1
456.25 mm
Shoulder diameter of inner ring (small side face)
D1
530.115 mm
Raceway diameter of outer ring (small side face)
b
41.275 mm
Inner ring locating slot width
h
64.2 mm
Inner ring locating slot depth
r1,2
6.4 mm
Chamfer dimension of inner ring
r3,4
6.4 mm
Chamfer dimension of outer ring
mass
275.0 kg
Product net weight
