SKF 7007 CE/P4ADBG3GMM2

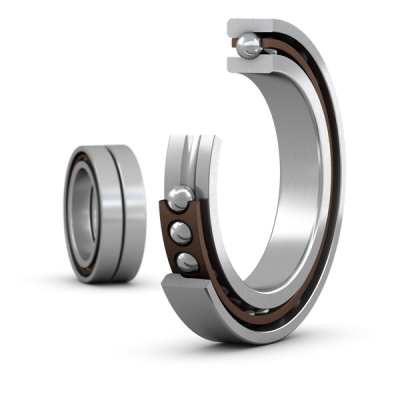

Matched set of two super-precision, high-speed E design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
35.0 mm
Bore diameter
D
62.0 mm
Outside diameter
B
28.0 mm
Width
d1
43.7 mm
Shoulder diameter of inner ring (large side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
0.301 kg
Product net weight
Abutment dimensions
da
39.6 mm
Diameter of shaft abutment
Db
57.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
dn
45.6 mm
Position of oil nozzle
