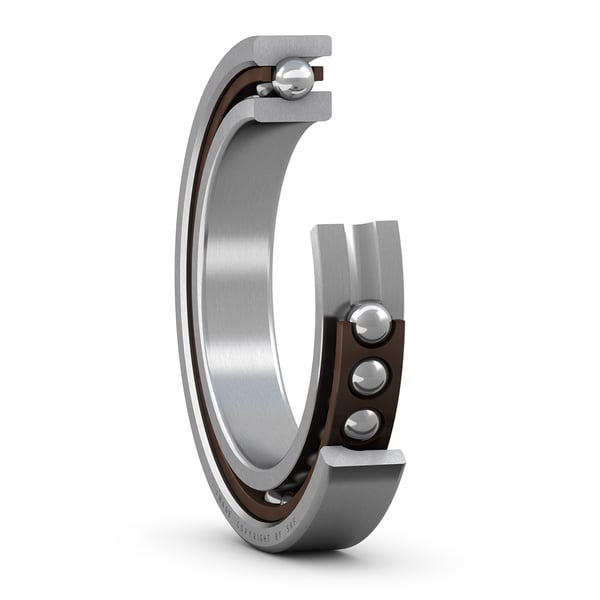

SKF 7009 ACE/P4A
Super-precision, high-speed E design, single row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
75.0 mm
Outside diameter
B
16.0 mm
Width
d1
55.7 mm
Shoulder diameter of inner ring (large side face)
d2
53.6 mm
Shoulder diameter of inner ring (small side face)
D1
64.25 mm
Shoulder diameter of outer ring (large side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
a
22.2 mm
Distance from side face to pressure point
mass
0.234 kg
Product net weight
Abutment dimensions
da
49.6 mm
Diameter of shaft abutment
db
49.6 mm
Diameter of shaft abutment
Da
70.4 mm
Diameter of housing abutment
Db
70.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
dn
57.6 mm
Position of oil nozzle
