SKF 7009 CE/HCP4AL1DT

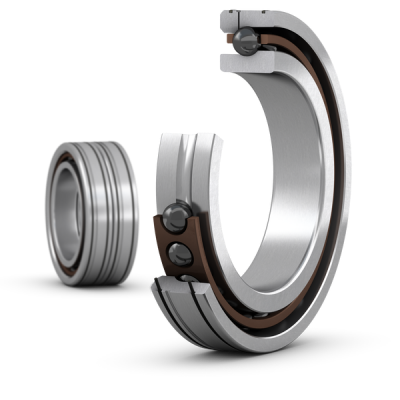

Matched set of two super-precision, high-speed E design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
75.0 mm
Outside diameter
B
32.0 mm
Width
d1
55.7 mm
Shoulder diameter of inner ring (large side face)
d2
53.6 mm
Shoulder diameter of inner ring (small side face)
D1
64.25 mm
Shoulder diameter of outer ring (large side face)
b
1.4 mm
Width of lubrication groove
C1
5.0 mm
Distance from outer ring side face to lubrication groove / lubrication hole
C2
3.0 mm
Distance from outer ring side face to O-ring groove
C3
3.0 mm
Distance from outer ring side face to O-ring groove
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
0.418 kg
Product net weight
Abutment dimensions
da
49.6 mm
Diameter of shaft abutment
db
49.6 mm
Diameter of shaft abutment
Da
70.4 mm
Diameter of housing abutment
Db
70.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
