SKF 7010 CE/HCP4ADGA

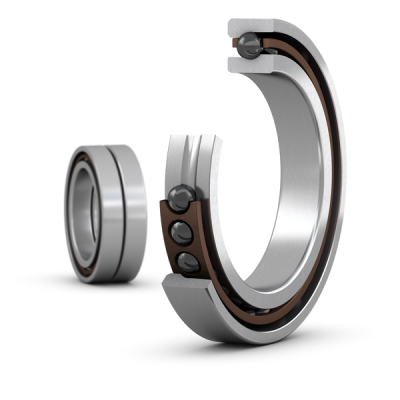

Matched set of two super-precision, high-speed E design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
32.0 mm
Width
d1
60.25 mm
Shoulder diameter of inner ring (large side face)
d2
57.9 mm
Shoulder diameter of inner ring (small side face)
D1
69.75 mm
Shoulder diameter of outer ring (large side face)
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
0.433 kg
Product net weight
Abutment dimensions
da
54.6 mm
Diameter of shaft abutment
db
54.6 mm
Diameter of shaft abutment
Da
75.4 mm
Diameter of housing abutment
Db
75.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
dn
62.3 mm
Position of oil nozzle
