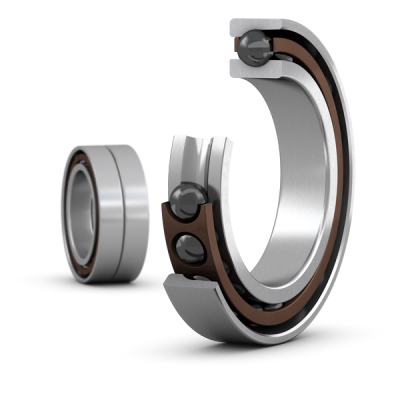

SKF 7011 CD/HCP4ADGB
Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
55.0 mm
Bore diameter
D
90.0 mm
Outside diameter
B
36.0 mm
Width
d1
65.8 mm
Shoulder diameter of inner ring (large side face)
d2
65.8 mm
Shoulder diameter of inner ring (small side face)
D1
79.2 mm
Shoulder diameter of outer ring (large side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
0.629 kg
Product net weight
Abutment dimensions
da
61.0 mm
Diameter of shaft abutment
db
61.0 mm
Diameter of shaft abutment
Da
84.0 mm
Diameter of housing abutment
Db
86.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
dn
68.1 mm
Position of oil nozzle
