SKF 7012 CD/P4ATBTA

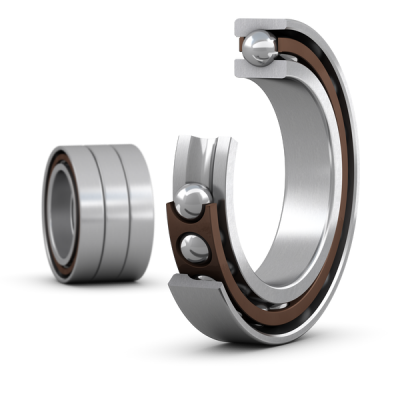

Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
95.0 mm
Outside diameter
B
54.0 mm
Width
d1
70.8 mm
Shoulder diameter of inner ring (large side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
1.19 kg
Product net weight
Abutment dimensions
da
66.0 mm
Diameter of shaft abutment
Db
91.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
dn
73.1 mm
Position of oil nozzle
