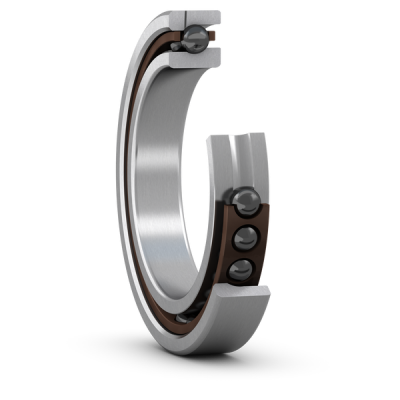

SKF 7012 CEGA/HCP4AH1
Super-precision, high-speed E design, universally matchable single row angular contact ball bearing suitable for direct oil-air lubrication
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
95.0 mm
Outside diameter
B
18.0 mm
Width
d1
72.74 mm
Shoulder diameter of inner ring (large side face)
d2
70.6 mm
Shoulder diameter of inner ring (small side face)
D1
82.22 mm
Shoulder diameter of outer ring (large side face)
K
0.5 mm
Diameter of lubrication hole
C1
6.3 mm
Distance from outer ring side face to lubrication groove / lubrication hole
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
a
19.5 mm
Distance from side face to pressure point
mass
0.387 kg
Product net weight
Abutment dimensions
da
66.0 mm
Diameter of shaft abutment
db
66.0 mm
Diameter of shaft abutment
Da
89.0 mm
Diameter of housing abutment
Db
90.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
