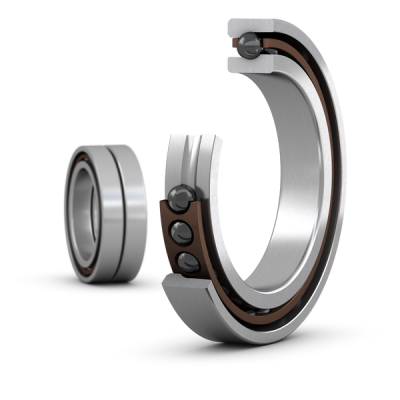

SKF 7013 ABA/HCP4ADG
Matched set of two super-precision, UltraFast A design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
65.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
36.0 mm
Width
d1
76.9 mm
Shoulder diameter of inner ring (large side face)
d2
74.8 mm
Shoulder diameter of inner ring (small side face)
D1
86.5 mm
Shoulder diameter of outer ring (large side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
0.856 kg
Product net weight
Abutment dimensions
da
71.0 mm
Diameter of shaft abutment
db
71.0 mm
Diameter of shaft abutment
Da
94.0 mm
Diameter of housing abutment
Db
96.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
dn
79.2 mm
Position of oil nozzle
