SKF 7014 ACD/P4ADBC

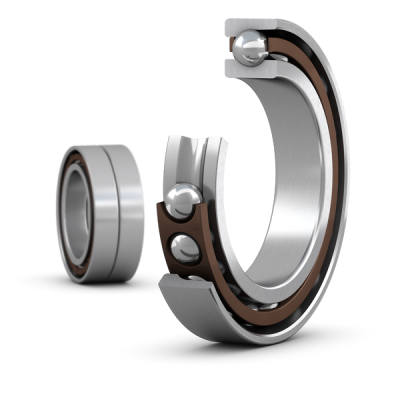

Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
40.0 mm
Width
d1
82.3 mm
Shoulder diameter of inner ring (large side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
1.17 kg
Product net weight
Abutment dimensions
da
76.0 mm
Diameter of shaft abutment
Db
106.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
dn
85.0 mm
Position of oil nozzle
