SKF 7014 ACE/HCP4AH1DT

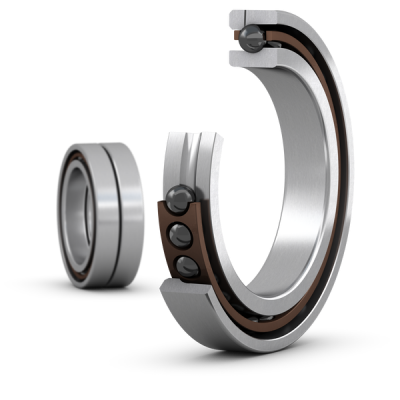

Matched set of two super-precision, high-speed E design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
40.0 mm
Width
d1
84.3 mm
Shoulder diameter of inner ring (large side face)
d2
81.6 mm
Shoulder diameter of inner ring (small side face)
D1
95.32 mm
Shoulder diameter of outer ring (large side face)
K
0.5 mm
Diameter of lubrication hole
C1
6.7 mm
Distance from outer ring side face to lubrication groove / lubrication hole
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
1.12 kg
Product net weight
Abutment dimensions
da
76.0 mm
Diameter of shaft abutment
db
76.0 mm
Diameter of shaft abutment
Da
104.0 mm
Diameter of housing abutment
Db
105.8 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
