SKF 7016 CD/P4AQBCB

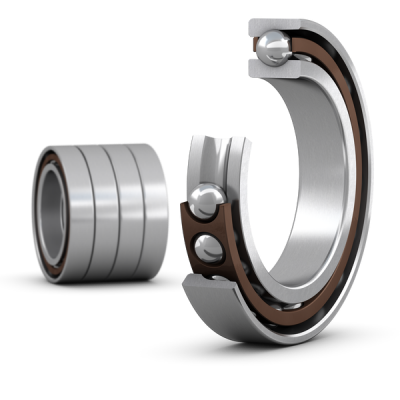

Matched set of four super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
125.0 mm
Outside diameter
B
88.0 mm
Width
d1
93.9 mm
Shoulder diameter of inner ring (large side face)
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
mass
3.37 kg
Product net weight
Abutment dimensions
da
86.0 mm
Diameter of shaft abutment
Db
121.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of fillet
rb
0.6 mm
Radius of fillet
dn
96.9 mm
Position of oil nozzle
