SKF 7022 ABA/HCP4ADG

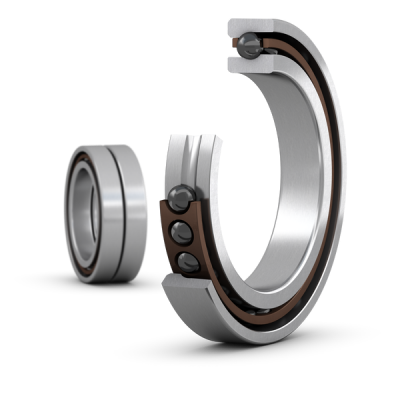

Matched set of two super-precision, UltraFast A design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
110.0 mm
Bore diameter
D
170.0 mm
Outside diameter
B
56.0 mm
Width
d1
132.1 mm
Shoulder diameter of inner ring (large side face)
d2
129.1 mm
Shoulder diameter of inner ring (small side face)
D1
145.5 mm
Shoulder diameter of outer ring (large side face)
r1,2
2.0 mm
Chamfer dimension
r3,4
1.0 mm
Chamfer dimension
mass
4.22 kg
Product net weight
Abutment dimensions
da
119.0 mm
Diameter of shaft abutment
db
119.0 mm
Diameter of shaft abutment
Da
161.0 mm
Diameter of housing abutment
Db
165.4 mm
Diameter of housing abutment
ra
2.0 mm
Radius of fillet
rb
1.0 mm
Radius of fillet
dn
135.3 mm
Position of oil nozzle
