SKF 7044 ACD/P4ADGB

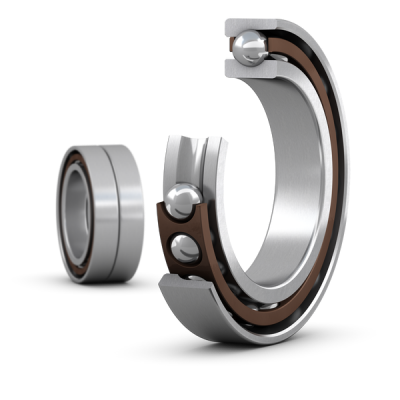

Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
220.0 mm
Bore diameter
D
340.0 mm
Outside diameter
B
112.0 mm
Width
d1
257.0 mm
Shoulder diameter of inner ring (large side face)
d2
257.0 mm
Shoulder diameter of inner ring (small side face)
D1
303.0 mm
Shoulder diameter of outer ring (large side face)
r1,2
3.0 mm
Chamfer dimension
r3,4
1.5 mm
Chamfer dimension
mass
31.7 kg
Product net weight
Abutment dimensions
da
233.0 mm
Diameter of shaft abutment
db
233.0 mm
Diameter of shaft abutment
Da
327.0 mm
Diameter of housing abutment
Db
334.0 mm
Diameter of housing abutment
ra
2.5 mm
Radius of fillet
rb
1.5 mm
Radius of fillet
dn
267.1 mm
Position of oil nozzle
