SKF 71800 CD/HCP2DBB

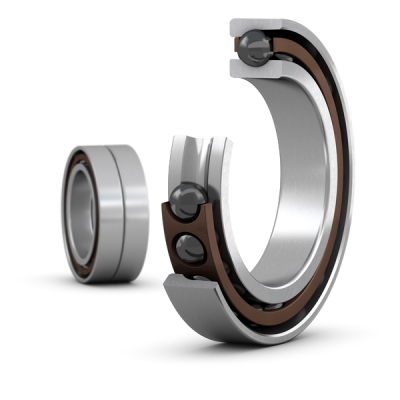

Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
10.0 mm
Bore diameter
D
19.0 mm
Outside diameter
B
10.0 mm
Width
d1
13.1 mm
Shoulder diameter of inner ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.15 mm
Chamfer dimension
mass
0.01 kg
Product net weight
Abutment dimensions
da
12.0 mm
Diameter of shaft abutment
Db
18.2 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.15 mm
Radius of fillet
dn
13.4 mm
Position of oil nozzle
