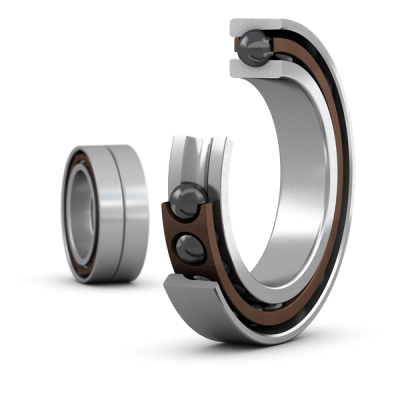

SKF 71806 ACD/HCP4DGA
Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
42.0 mm
Outside diameter
B
14.0 mm
Width
d1
34.1 mm
Shoulder diameter of inner ring (large side face)
d2
34.1 mm
Shoulder diameter of inner ring (small side face)
D1
38.1 mm
Shoulder diameter of outer ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.15 mm
Chamfer dimension
mass
0.048 kg
Product net weight
Abutment dimensions
da
32.0 mm
Diameter of shaft abutment
db
32.0 mm
Diameter of shaft abutment
Da
40.0 mm
Diameter of housing abutment
Db
41.2 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.15 mm
Radius of fillet
dn
34.5 mm
Position of oil nozzle
