SKF 71808 CD/P4TBTM

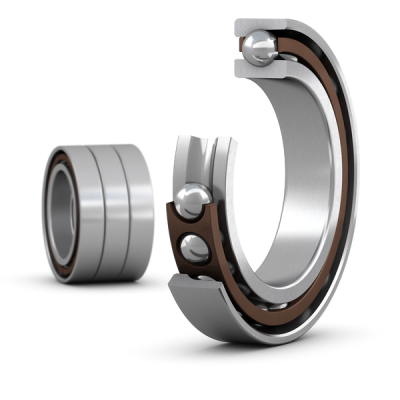

Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
40.0 mm
Bore diameter
D
52.0 mm
Outside diameter
B
21.0 mm
Width
d1
44.1 mm
Shoulder diameter of inner ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.15 mm
Chamfer dimension
mass
0.096 kg
Product net weight
Abutment dimensions
da
42.0 mm
Diameter of shaft abutment
Db
51.2 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.15 mm
Radius of fillet
dn
44.5 mm
Position of oil nozzle
