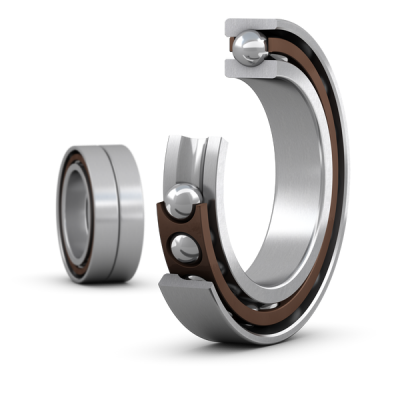

SKF 71810 ACD/P4DBB
Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
65.0 mm
Outside diameter
B
14.0 mm
Width
d1
55.1 mm
Shoulder diameter of inner ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.15 mm
Chamfer dimension
mass
0.102 kg
Product net weight
Abutment dimensions
da
52.0 mm
Diameter of shaft abutment
Db
64.2 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.15 mm
Radius of fillet
dn
55.6 mm
Position of oil nozzle
