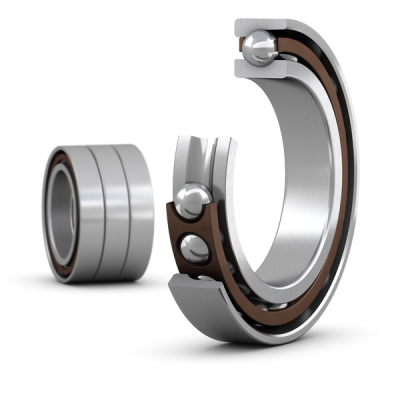

SKF 71812 ACD/P4TBTA
Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
78.0 mm
Outside diameter
B
30.0 mm
Width
d1
65.7 mm
Shoulder diameter of inner ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.15 mm
Chamfer dimension
mass
0.303 kg
Product net weight
Abutment dimensions
da
62.0 mm
Diameter of shaft abutment
Db
77.2 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.15 mm
Radius of fillet
dn
66.4 mm
Position of oil nozzle
