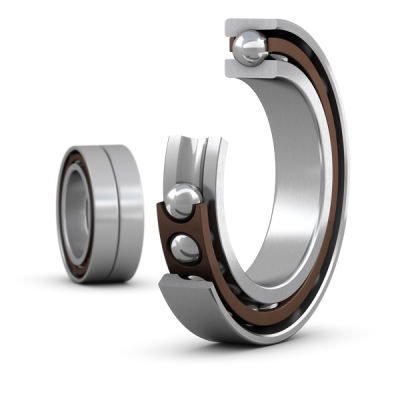

SKF 71812 CD/P4DBB
Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
78.0 mm
Outside diameter
B
20.0 mm
Width
d1
65.7 mm
Shoulder diameter of inner ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.15 mm
Chamfer dimension
mass
0.2 kg
Product net weight
Abutment dimensions
da
62.0 mm
Diameter of shaft abutment
Db
77.2 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.15 mm
Radius of fillet
dn
66.4 mm
Position of oil nozzle
