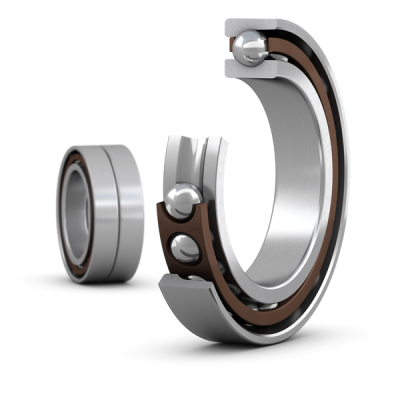

SKF 71816 ACD/P4DBC
Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
20.0 mm
Width
d1
86.7 mm
Shoulder diameter of inner ring (large side face)
r1,2
0.6 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
mass
0.302 kg
Product net weight
Abutment dimensions
da
83.2 mm
Diameter of shaft abutment
Db
98.0 mm
Diameter of housing abutment
ra
0.6 mm
Radius of fillet
rb
0.3 mm
Radius of fillet
dn
87.4 mm
Position of oil nozzle
