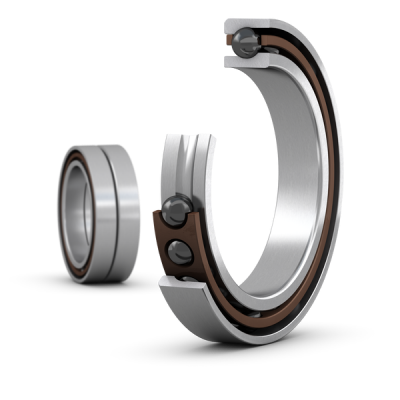

SKF 71900 CE/HCP4ADT
Matched set of two super-precision, high-speed E design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
10.0 mm
Bore diameter
D
22.0 mm
Outside diameter
B
12.0 mm
Width
d1
14.0 mm
Shoulder diameter of inner ring (large side face)
d2
13.26 mm
Shoulder diameter of inner ring (small side face)
D1
17.92 mm
Shoulder diameter of outer ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.15 mm
Chamfer dimension
mass
0.018 kg
Product net weight
Abutment dimensions
da
12.0 mm
Diameter of shaft abutment
db
12.0 mm
Diameter of shaft abutment
Da
20.0 mm
Diameter of housing abutment
Db
21.2 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.15 mm
Radius of fillet
dn
14.8 mm
Position of oil nozzle
