SKF 71901 ACD/P4ADBA

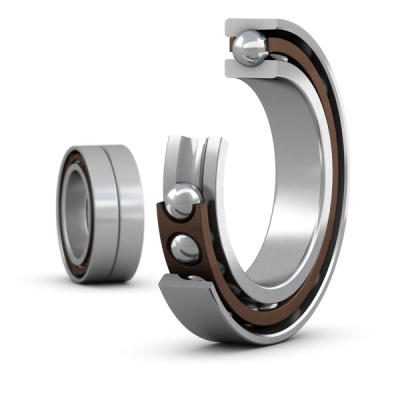

Matched set of two super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
12.0 mm
Bore diameter
D
24.0 mm
Outside diameter
B
12.0 mm
Width
d1
16.0 mm
Shoulder diameter of inner ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.2 mm
Chamfer dimension
mass
0.022 kg
Product net weight
Abutment dimensions
da
14.0 mm
Diameter of shaft abutment
Db
22.6 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.2 mm
Radius of fillet
dn
16.8 mm
Position of oil nozzle
