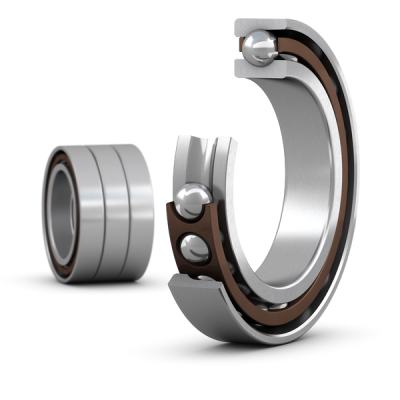

SKF 71902 ACD/P4ATBTA
Matched set of three super-precision, high-capacity, D design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
15.0 mm
Bore diameter
D
28.0 mm
Outside diameter
B
21.0 mm
Width
d1
18.9 mm
Shoulder diameter of inner ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.2 mm
Chamfer dimension
mass
0.048 kg
Product net weight
Abutment dimensions
da
17.0 mm
Diameter of shaft abutment
Db
26.6 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.2 mm
Radius of fillet
dn
20.1 mm
Position of oil nozzle
