SKF 71902 ACE/P4ADBC

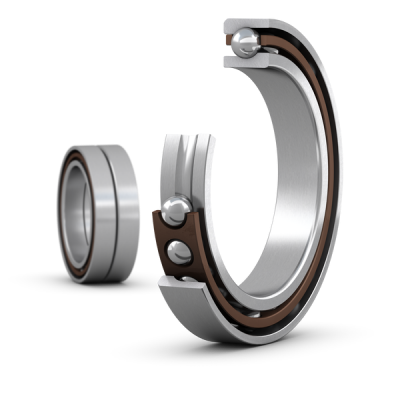

Matched set of two super-precision, high-speed E design, single row angular contact ball bearings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
15.0 mm
Bore diameter
D
28.0 mm
Outside diameter
B
14.0 mm
Width
d1
19.1 mm
Shoulder diameter of inner ring (large side face)
r1,2
0.3 mm
Chamfer dimension
r3,4
0.15 mm
Chamfer dimension
mass
0.032 kg
Product net weight
Abutment dimensions
da
17.0 mm
Diameter of shaft abutment
Db
27.2 mm
Diameter of housing abutment
ra
0.3 mm
Radius of fillet
rb
0.15 mm
Radius of fillet
dn
20.0 mm
Position of oil nozzle
